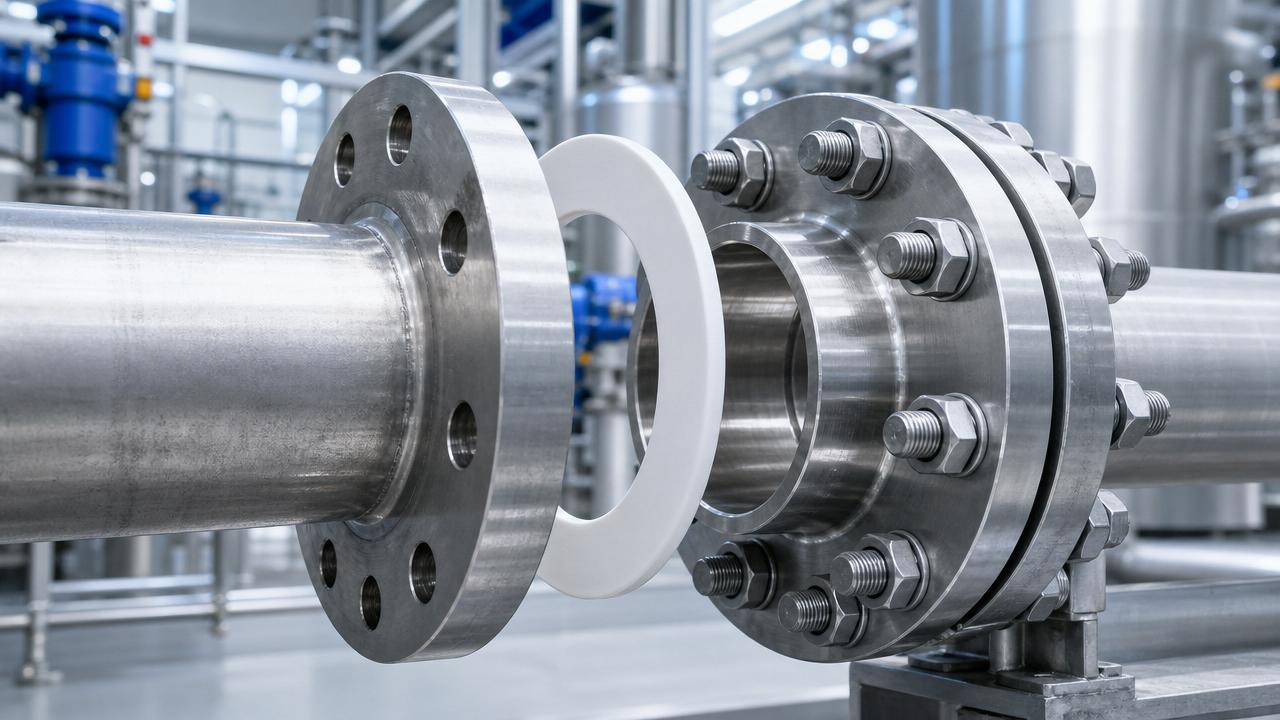

ISO Compliant PTFE Gaskets: Common Fit-Up Mistakes

Even premium PTFE gaskets can underperform when fit-up discipline is weak. In systems requiring ISO compliant seals, installation quality is as important as material quality.

A small alignment error, uneven bolt load, or damaged flange face can trigger leakage, creep, cold flow, and early replacement. These issues are common across process plants, utilities, clean manufacturing, and high-spec equipment.

This guide reviews the most frequent fit-up mistakes with PTFE gaskets. It also explains how ISO compliant seals should be checked, installed, and monitored to protect containment reliability.

PTFE gaskets and the meaning of ISO compliant seals

PTFE gaskets are widely used because they resist chemicals, handle broad temperatures, and maintain cleanliness in sensitive service. They appear in pipelines, valve joints, instrument connections, reactors, and enclosure interfaces.

However, PTFE behaves differently from metal or fiber materials. It can deform under load, relax over time, and respond strongly to flange condition and torque consistency.

In practical terms, ISO compliant seals are not defined by one single action. Compliance depends on matching gasket selection, flange preparation, assembly procedure, traceability, and inspection to relevant ISO-controlled practices.

For PTFE sealing, fit-up quality usually determines whether the joint performs as intended. A compliant part installed badly is still a high-risk joint.

Why fit-up matters more with PTFE

• PTFE is softer than many flange materials.
• It can creep when compressive stress is uneven.
• Low friction may mask poor seating during assembly.
• Thermal cycling can amplify early installation defects.

Current industry focus on installation reliability

Across the general industrial sector, sealing failures are increasingly traced to assembly practice rather than gasket chemistry alone. That is why ISO compliant seals now receive closer attention during maintenance planning and shutdown audits.

High-purity systems, corrosive process lines, and regulated production environments all demand repeatable fit-up. One missed step can affect safety, emissions, uptime, and product integrity.

Common fit-up mistakes with PTFE gaskets

1. Reusing damaged or deformed gaskets

PTFE gaskets should not be reused after compression unless the design specifically permits it. Once seated, the material may show deformation that prevents stable resealing.

Reused parts often create false confidence during assembly. ISO compliant seals depend on condition control, not appearance alone.

2. Installing on scratched or warped flange faces

Flange surface defects are a major source of leaks. PTFE can conform to minor irregularities, but deep scratches, pitting, and distortion reduce contact uniformity.

If the face finish is outside specification, even ISO compliant seals may fail early. Surface condition must be verified before every installation.

3. Misalignment during joint assembly

Forcing pipe ends into position introduces bending stress across the gasket. The result is nonuniform compression, edge loading, and distortion after tightening.

PTFE is especially vulnerable because load concentration promotes cold flow. Proper fit-up means the joint should mate naturally before bolts are tightened.

4. Incorrect bolt tightening sequence

A random tightening pattern creates localized stress. This can trap one side of the gasket, distort the flange, and reduce sealing contact elsewhere.

Cross-pattern tightening in controlled stages is essential for ISO compliant seals. Uniform compression matters more than rapid assembly.

5. Over-torquing or under-torquing

Under-torquing leaves insufficient seating stress. Over-torquing can crush the gasket, deform the flange, and accelerate relaxation after startup.

PTFE requires a controlled load window. ISO compliant seals perform best when torque values reflect gasket type, flange design, and service conditions.

6. Using contaminated fasteners or lubricants incorrectly

Dirty threads and inconsistent lubrication create misleading torque readings. Actual bolt load may differ widely from the target.

That gap often explains why ISO compliant seals leak even when the documented torque appears correct. Fastener condition must be part of the fit-up check.

7. Ignoring thermal and media compatibility details

Not all PTFE gasket constructions behave the same. Expanded PTFE, filled PTFE, and envelope designs react differently to pressure, temperature, and aggressive chemicals.

Selecting a broadly resistant material is not enough. ISO compliant seals must also match the real service profile, including cycling and upset conditions.

Business and operational value of correct fit-up

Correct fit-up reduces leakage events, protects connected equipment, and extends maintenance intervals. It also lowers hidden costs linked to unplanned stoppage and cleanup.

In regulated operations, reliable installation records support audits and incident review. For ISO compliant seals, documentation strengthens both technical control and accountability.

• Lower emission and product-loss risk
• More stable startup after shutdown work
• Better gasket life in demanding services
• Clearer root-cause analysis when issues occur

Typical sealing scenarios where mistakes appear most often

Practical fit-up guidance for ISO compliant seals

Before installation

1. Confirm gasket type, dimensions, and service rating.
2. Inspect flange faces for scratches, warping, and debris.
3. Check bolt, nut, and washer condition.
4. Verify alignment before inserting the gasket.

During installation

1. Center the gasket carefully without stretching or folding.
2. Apply lubrication consistently if the procedure requires it.
3. Tighten bolts in a cross pattern and in several stages.
4. Use calibrated tools to reach the specified torque.

After installation

1. Record gasket batch, torque data, and flange location.
2. Inspect for visible displacement or uneven gaps.
3. Review startup behavior under pressure and temperature changes.
4. Update maintenance procedures when failure patterns repeat.

A disciplined next step for sealing reliability

PTFE gasket performance depends on more than material selection. The most reliable ISO compliant seals are supported by repeatable fit-up, verified surfaces, controlled bolt load, and accurate records.

A practical next step is to review one standard joint assembly procedure and compare it with actual field practice. Focus on flange inspection, torque staging, alignment checks, and gasket traceability.

That simple review often reveals why leakage persists. It also creates a stronger foundation for longer gasket life, cleaner operation, and more dependable containment performance.
